LACTOMAT RAPID
LACTOMAT RAPID
Couldn't load pickup availability

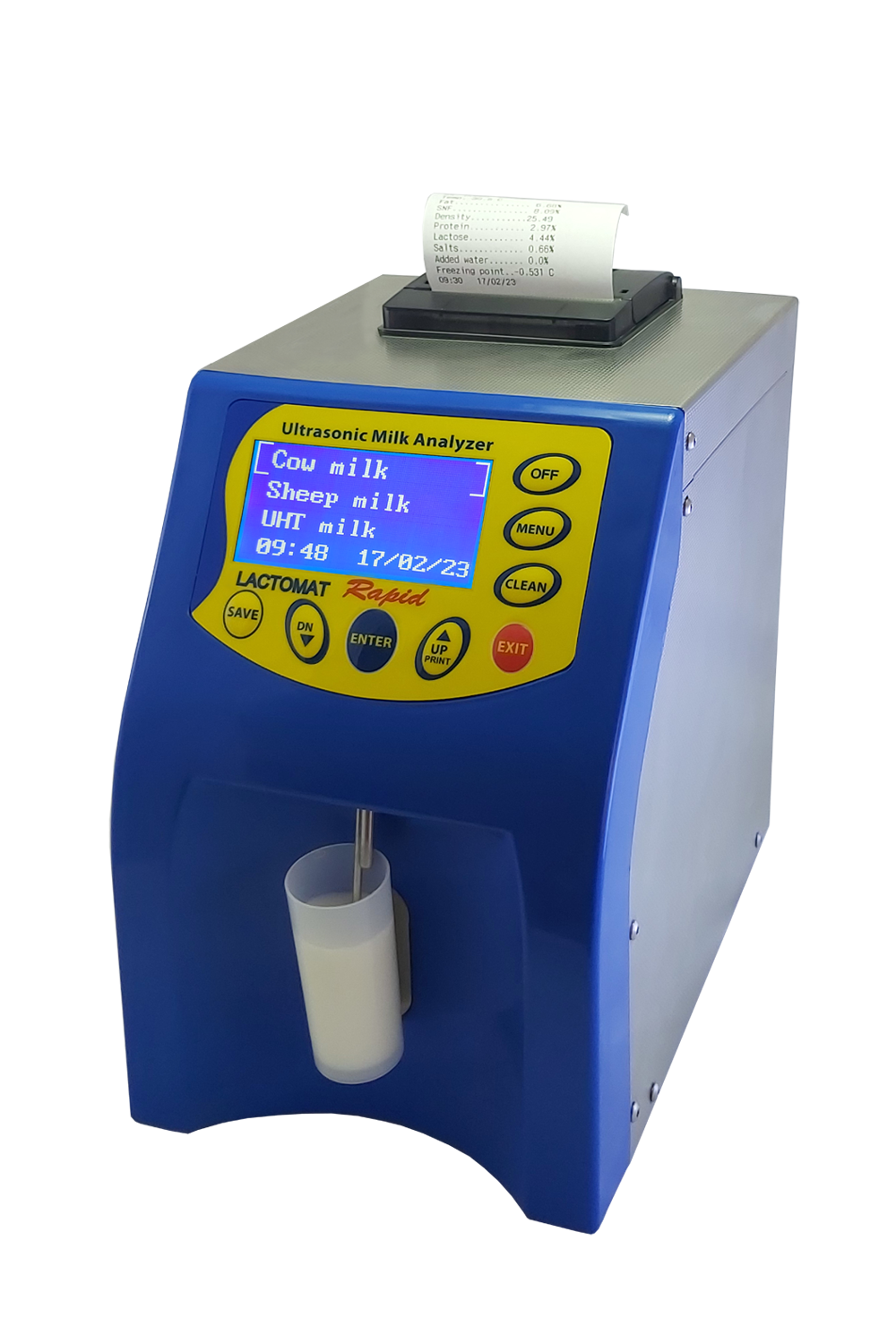

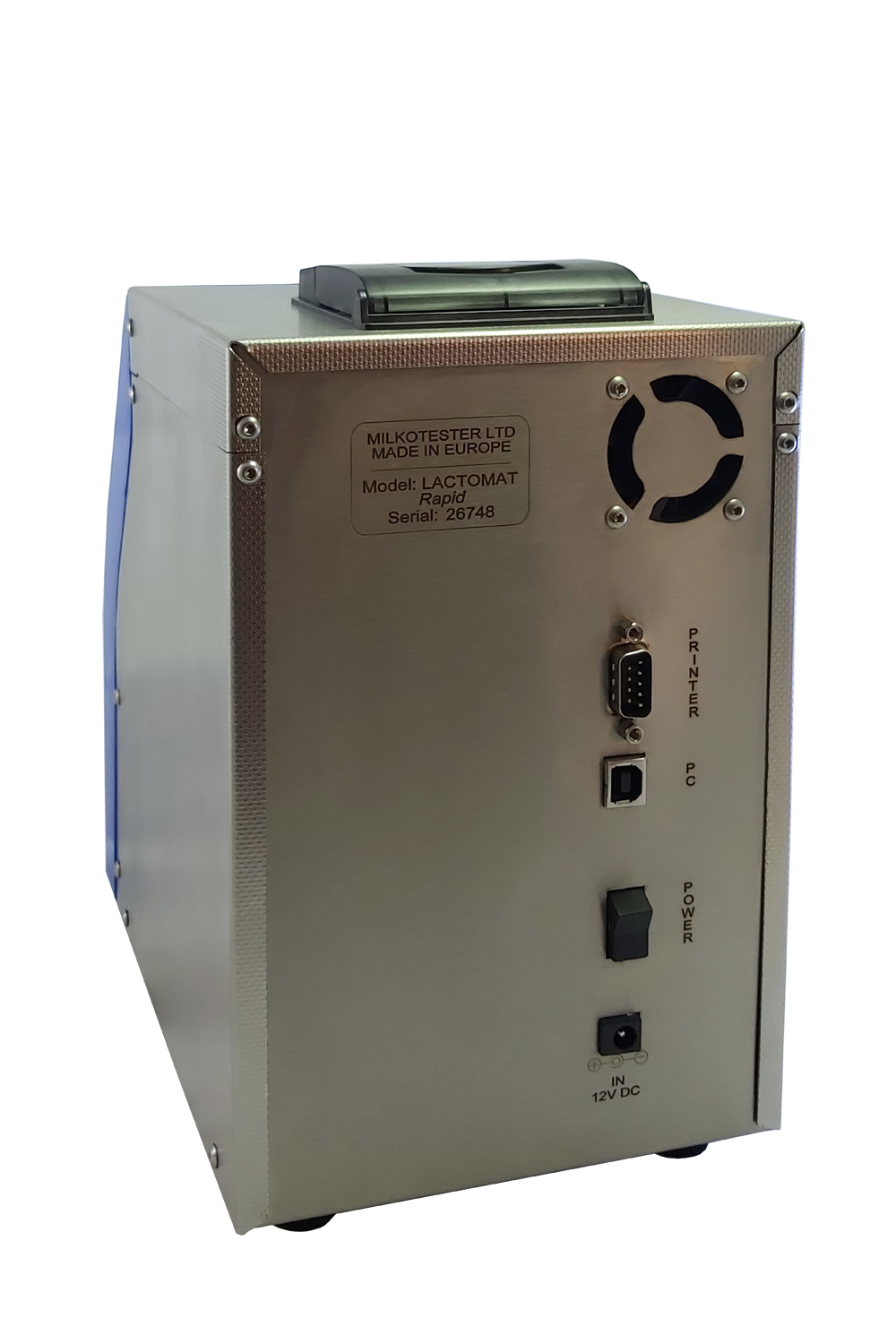

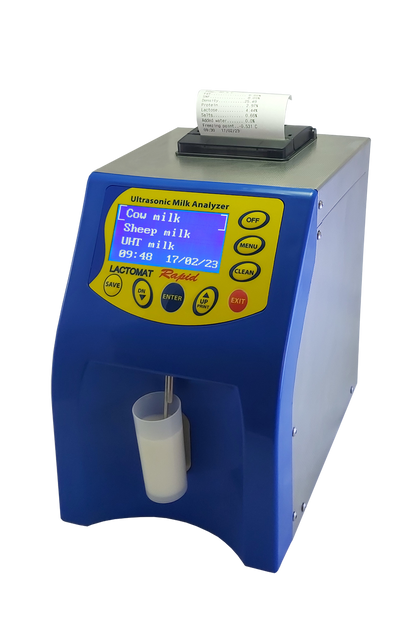

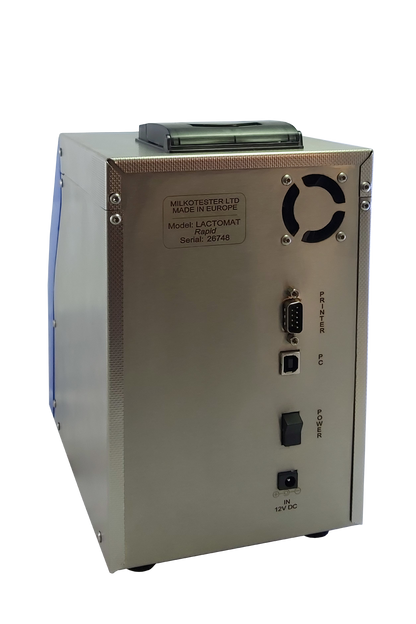

New ultrasonic milk testing machines, Rapid from the Lactomat series are the fastest high-end instruments used for measuring the basic components of the milk. Powered be new generation microprocessor with 20 times more capacity for data processing. Accurate analysis of the components is carried for 18 seconds for sample temperature 28° C and 15 seconds for 38° C . Milk analyzers Lactomat Rapid are compact devices equipped with double measuring cell and inbuilt ventilation system for prevention of overheating in hot environments. Stainless steel and plastic housing.Three calibration channels are available. Standard calibrations for milk analyzer Lactomat Rapid are for Cow milk, Sheep milk, UHT. The analyzer can be calibrated also for: Buffalo milk, Pasteurized milk, Goat milk, Mixed milk, Skimmed milk, Whey and other types of milk and milk derivatives.
|
Technical Overview |
|
|
Sample Volume |
20 ml. |
|
Sample Speed |
18sec. |
|
Sample Temperature |
1˚ C – ˚45 C |
|
Humidity |
0 – 80℅ RH |
|
Interface |
RS 232 Port |
|
Interface |
USB |
|
AC Power Supply |
95 – 250 V |
|
DC Power Supply |
12 V |
|
Dimensions |
145/220/230mm |
|
Weight |
1.9kg. |
BROCHURE
INSTRUCTION MANUAL
MILK DATA BANK - software download
More Info
- Ultrasonic Technology
- Very small quantity of milk needed
- Memory for 500 measurements
- Self calibration without computer
- Low power consumption
- 1 x RS232 connection
- Large graphic display
- 1 x USB connection to PC
- ESC POS Printer Support
- Built-in keypad
- Peristaltic pump
- One year full waranty
- Clock (time and date)
- No acids or other chemicals are used
|
Measuring Ranges |
||
|
Fat |
0℅ -25℅ |
±0.1℅ |
|
Solids-Non-Fat (SNF) |
3℅ - 40℅ |
±0.15℅ |
|
Density |
1000 – 1160 kg/m3 |
±0.3kg/m3 |
|
Protein |
2℅ - 15℅ |
±0.15℅ |
|
Lactose |
0.01℅ - 20℅ |
±0.2℅ |
|
Salts |
0.4℅ - 4℅ |
±0.05℅ |
|
Add Water |
0℅ - 70℅ |
±3℅ |
|
Freezing Point |
-0.4˚C to -0.7˚C |
±0.005˚C |
|
Sample Temperature |
1˚C-45˚C |
±1˚C |
